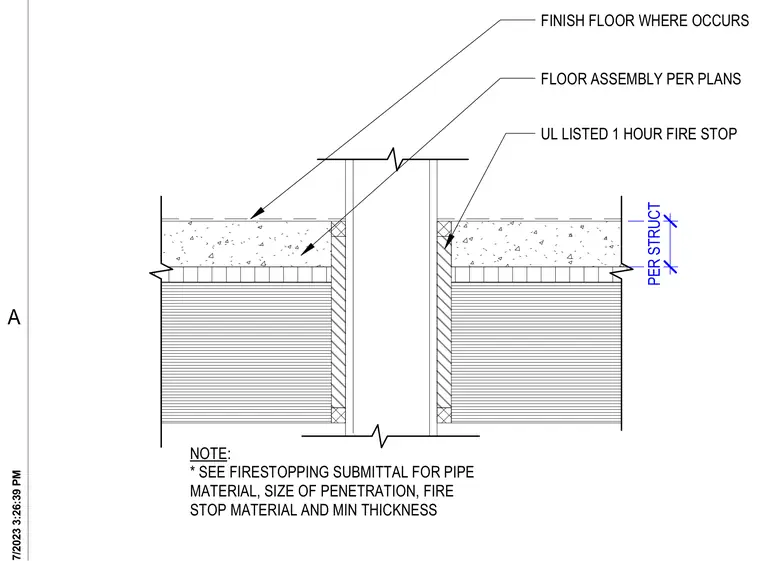

A pipe penetrates a structural floor assembly per plans, finished with a floor finish where it occurs. A UL listed one-hour fire stop is installed around the penetration within the floor thickness. The firestop material, pipe material, penetration size, and minimum thickness are governed by the firestopping submittal.
UL LISTED 1 HOUR FIRE STOP PER STRUCT FLOOR ASSEMBLY PER PLANS FINISH FLOOR WHERE OCCURS NOTE: * SEE FIRESTOPPING SUBMITTAL FOR PIPE MATERIAL, SIZE OF PENETRATION, FIRE STOP MATERIAL AND MIN THICKNESS A
