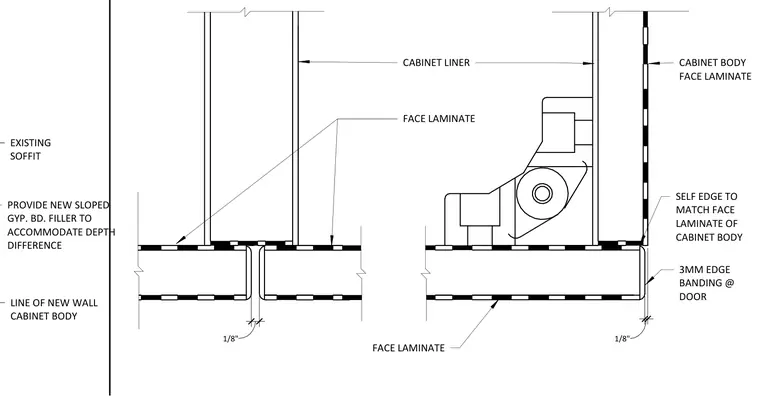

Cabinet edge conditions interface with an existing soffit through a new sloped gypsum board filler designed to accommodate depth differences. The cabinet body features a face laminate finished with a self-edge to match, alongside three-millimeter edge banding at the door with one-eighth-inch clearances. Cabinet liners and face laminates assemble to form the casework body.
EXISTING SOFFIT PROVIDE NEW SLOPED GYP. BD. FILLER TO ACCOMMODATE DEPTH DIFFERENCE LINE OF NEW WALL CABINET BODY CABINET LINER FACE LAMINATE FACE LAMINATE CABINET BODY FACE LAMINATE SELF EDGE TO MATCH FACE LAMINATE OF CABINET BODY 3MM EDGE BANDING @ DOOR 1/8" 1/8"
