Architectural · A-VXWJN

Brick Shapes

Materials

Brick

About this detail

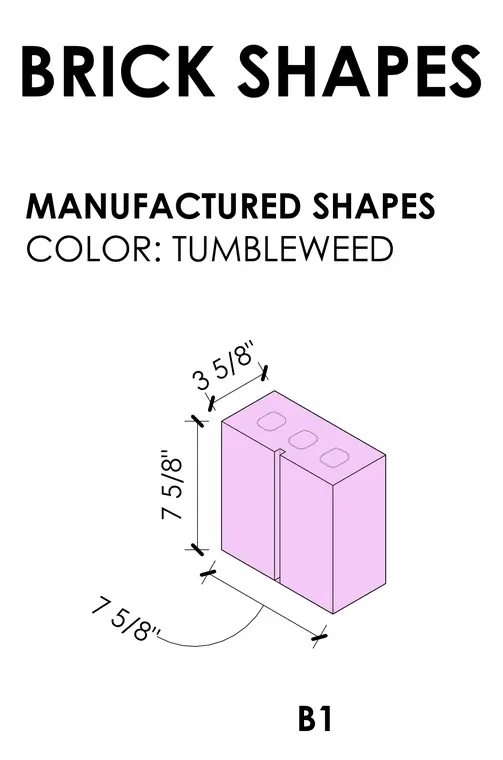

Manufactured brick shape designated as B1 in Tumbleweed color with dimensions measuring 3 5/8 inches by 7 5/8 inches by 7 5/8 inches.

3 5/8" 7 5/8" B1 7 5/8" BRICK SHAPES MANUFACTURED SHAPES COLOR: TUMBLEWEED

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
