A stair guardrail and handrail assembly is anchored to a precast concrete-filled pan stair system. The guardrail frame consists of two-inch by one-half-inch steel tube rails and posts enclosing metal mesh panels. A separate two-inch by one-inch handrail is supported by a three-eighths-inch square steel handrail bracket arm featuring a bracket saddle countersunk for two stainless steel flat head machine screws. At the stair stringer and base, a three-and-a-half-inch by one-and-one-quarter-inch by one-eighth-inch angle frame completes the structural connection.

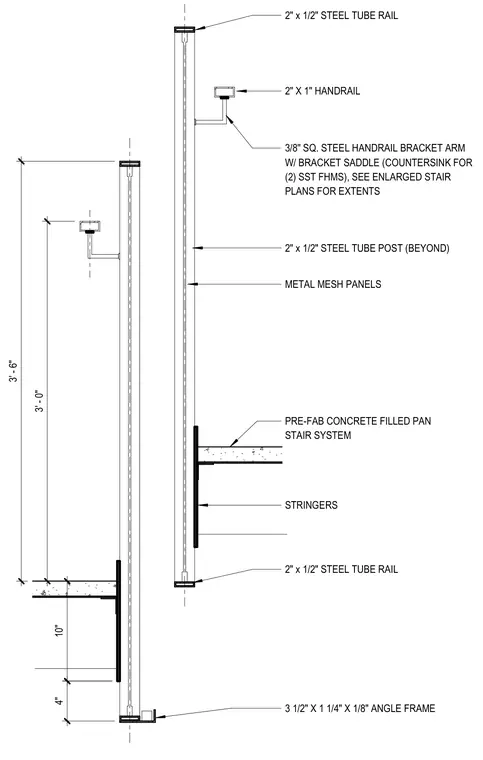

2" x 1/2" STEEL TUBE RAIL METAL MESH PANELS PRE-FAB CONCRETE FILLED PAN STAIR SYSTEM 2" x 1/2" STEEL TUBE POST (BEYOND) 2" x 1/2" STEEL TUBE RAIL 3' - 6" 2" X 1" HANDRAIL 3/8" SQ. STEEL HANDRAIL BRACKET ARM W/ BRACKET SADDLE (COUNTERSINK FOR (2) SST FHMS), SEE ENLARGED STAIR PLANS FOR EXTENTS STRINGERS 10" 3' - 0" 4" 3 1/2" X 1 1/4" X 1/8" ANGLE FRAME
