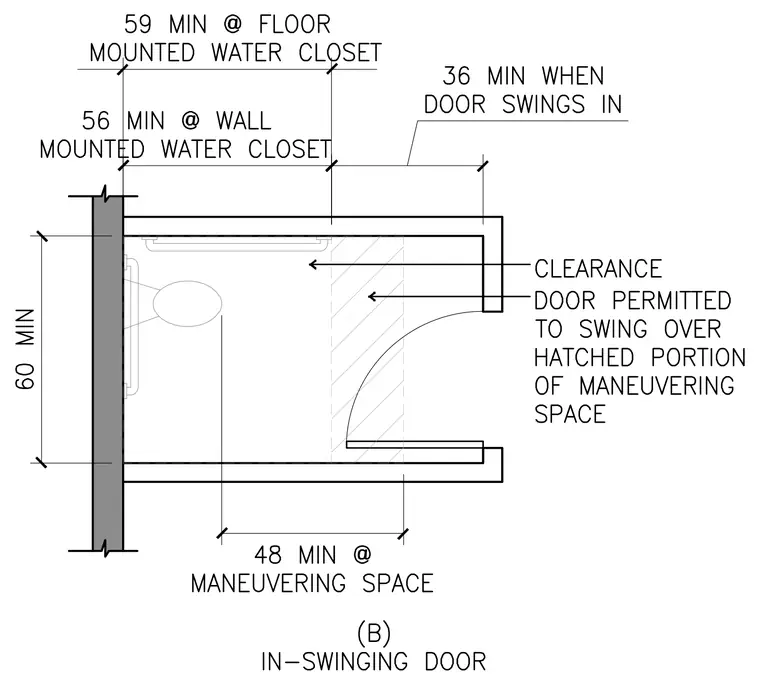

An accessible toilet stall layout provides minimum clearances for water closets and maneuvering space with an in-swinging door. The stall requires fifty-nine inches minimum depth at floor-mounted water closets and fifty-six inches minimum at wall-mounted water closets. Maneuvering space requires forty-eight inches minimum width with sixty inches minimum overall depth. The door is permitted to swing over the hatched portion of the maneuvering space when utilizing a thirty-six inch minimum clearance.
