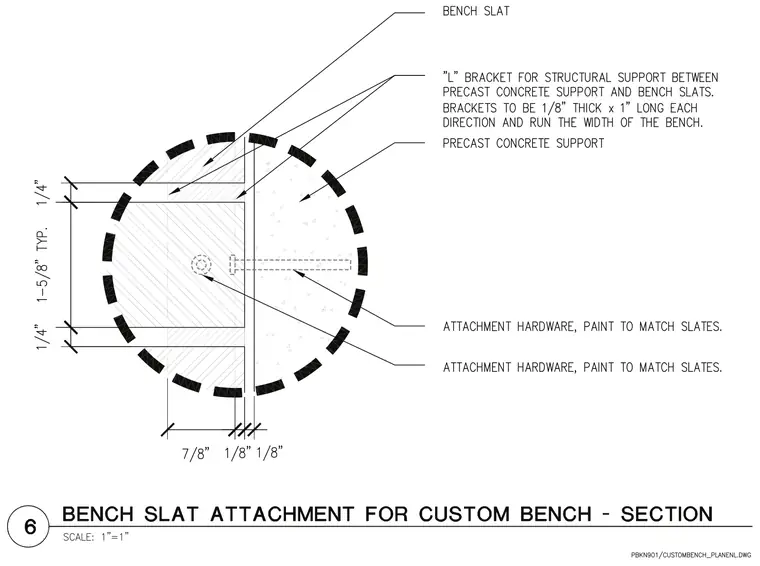

Wooden bench slats connect structurally to a precast concrete support using custom L-brackets. The L-brackets are one-eighth inch thick by one inch long in each direction and span the entire width of the bench. Attachment hardware secures the assembly, with finishes painted to match the wood slats. Dimensions indicate a one-quarter inch gap, a one and five-eighth inch typical slat dimension, and seven-eighth inching along with one-eighth inch spacer thicknesses.
