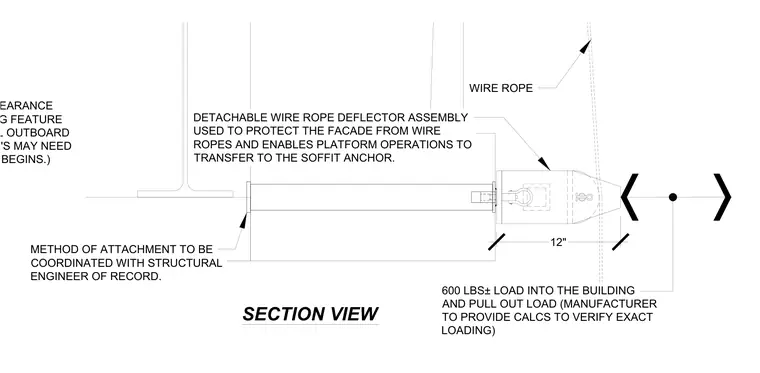

A detachable wire rope deflector assembly protects building facades from wire ropes while enabling platform operations to transfer to the soffit anchor. The unit projects twelve inches and transmits six hundred pounds of inward and outward load to the building structure, with exact loading verified by manufacturer calculations. The method of attachment requires coordination with the structural engineer of record. A minimum five-foot platform clearance must be maintained beyond any facade or building feature that the platform travels outboard of during servicing.
ENSURE 5'-0" MIN. PLATFORM CLEARANCE BEYOND ANY FACADE OR BUILDING FEATURE THAT THE PLATFORM MUST TRAVEL OUTBOARD OF TO SERVICE THE FACADE. (TREE'S MAY NEED TO BE TRIMMED BEFORE WORK BEGINS.) METHOD OF ATTACHMENT TO BE COORDINATED WITH STRUCTURAL ENGINEER OF RECORD. WIRE ROPE DETACHABLE WIRE ROPE DEFLECTOR ASSEMBLY USED TO PROTECT THE FACADE FROM WIRE ROPES AND ENABLES PLATFORM OPERATIONS TO TRANSFER TO THE SOFFIT ANCHOR. 12" 600 LBS± LOAD INTO THE BUILDING AND PULL OUT LOAD (MANUFACTURER TO PROVIDE CALCS TO VERIFY EXACT LOADING) SECTION VIEW
