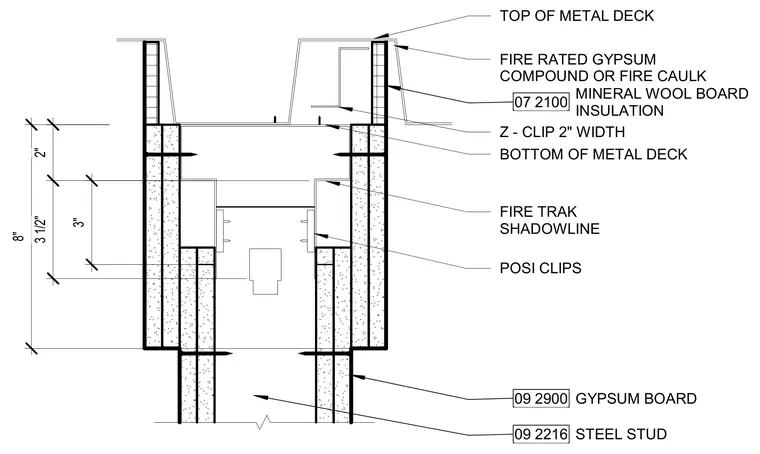

A fire-rated gypsum compound or fire caulk seals the gap at the top of the metal deck. Mineral wool board insulation fills the flutes above a 2-inch wide Z-clip. Gypsum board is fastened to steel studs terminating within a Fire Trak shadowline deflection track with Posi clips.
Z - CLIP 2" WIDTH FIRE TRAK SHADOWLINE POSI CLIPS FIRE RATED GYPSUM COMPOUND OR FIRE CAULK 8" 3 1/2" 2" 3" 09 2900 GYPSUM BOARD 09 2216 STEEL STUD TOP OF METAL DECK BOTTOM OF METAL DECK 07 2100 MINERAL WOOL BOARD INSULATION
