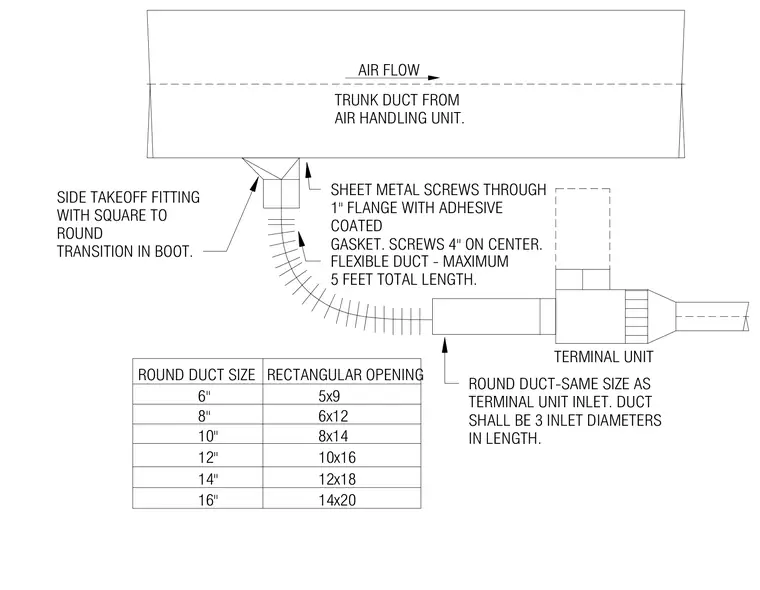

Air flows from a main trunk duct supplied by an air handling unit through a side takeoff fitting featuring a square-to-round transition boot. Sheet metal screws fasten through a one-inch flange with an adhesive coated gasket at four inches on center. A flexible duct connects the takeoff to the terminal unit, limited to a maximum length of five feet. The round duct leading into the terminal unit matches the inlet size and maintains a length equal to three inlet diameters.
AIR FLOW TRUNK DUCT FROM AIR HANDLING UNIT. SHEET METAL SCREWS THROUGH 1" FLANGE WITH ADHESIVE COATED GASKET. SCREWS 4" ON CENTER. SIDE TAKEOFF FITTING WITH SQUARE TO ROUND TRANSITION IN BOOT. FLEXIBLE DUCT - MAXIMUM 5 FEET TOTAL LENGTH. TERMINAL UNIT ROUND DUCT-SAME SIZE AS TERMINAL UNIT INLET. DUCT SHALL BE 3 INLET DIAMETERS IN LENGTH. RECTANGULAR OPENING 5x9 6x12 8x14 10x16 12x18 14x20 16" 14" 12" 10" 8" 6" ROUND DUCT SIZE
