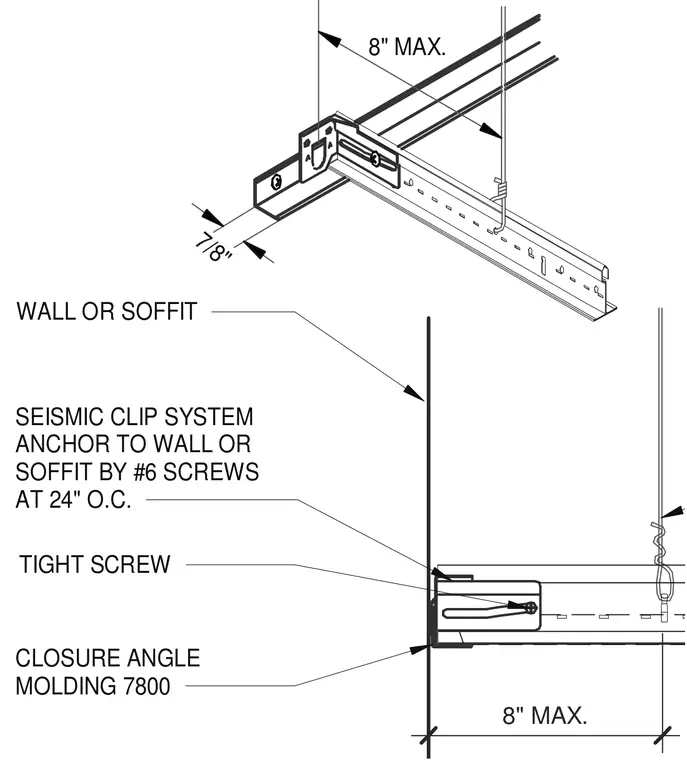

A 7800 closure angle molding terminates the suspended ceiling system against a vertical wall or horizontal soffit. The assembly incorporates a seismic clip system secured to the perimeter wall or soffit using number 6 screws spaced at twenty-four inches on center maximum. A tight screw fastens the grid component to the closure angle. A hanger wire supports the main runner at a maximum spacing of eight inches from the vertical termination.
WALL OR SOFFIT CLOSURE ANGLE MOLDING 7800 TIGHT SCREW SEISMIC CLIP SYSTEM ANCHOR TO WALL OR SOFFIT BY #6 SCREWS AT 24" O.C. 8" MAX. 8" MAX. 7/8"
