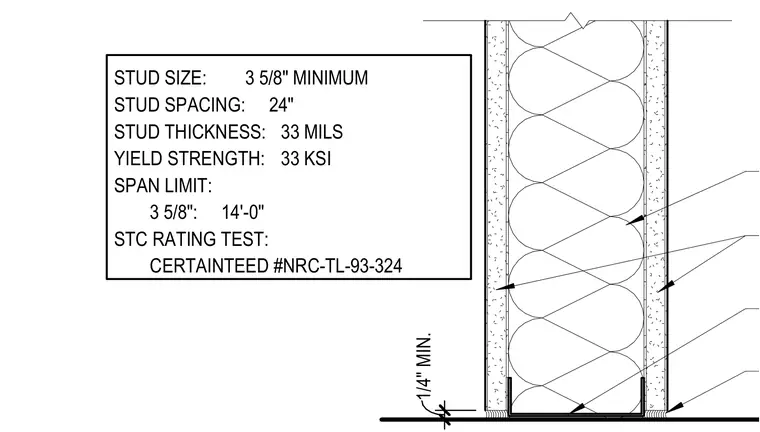

This STC 50 acoustic partition assembly consists of three-and-five-eighths-inch minimum light-gauge steel studs spaced at twenty-four inches on center with a thickness of thirty-three mils and a yield strength of thirty-three kilopounds per square inch. The wall accommodates a span limit of fourteen feet for the three-and-five-eighths-inch studs. The assembly incorporates sound-rated gypsum board layers on both faces over sound-attenuation batt insulation filling the stud cavity. A minimum quarter-inch clearance is maintained at the track connection.
1 / 4 " M I N . STUD SIZE: 3 5/8" MINIMUM STUD SPACING: 24" STUD THICKNESS: 33 MILS YIELD STRENGTH: 33 KSI SPAN LIMIT: 3 5/8": 14'-0" STC RATING TEST: CERTAINTEED #NRC-TL-93-324
