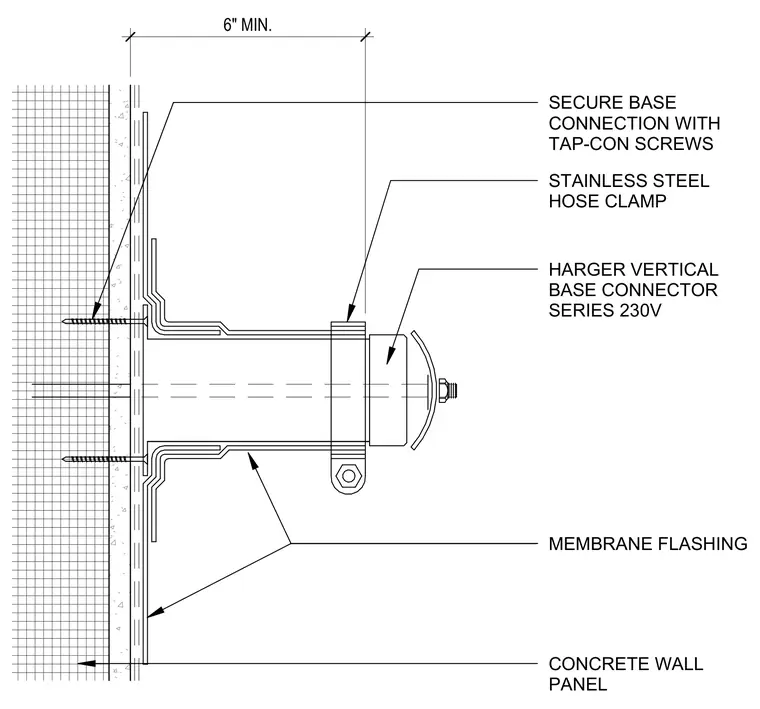

A Harger vertical base connector series 230V mounts to a concrete wall panel with a secure base connection using Tap-con screws. Membrane flashing seals the penetration through the exterior wall assembly. A stainless steel hose clamp secures the grounding conductor and connector components with a minimum six-inch dimension clearance.
6" MIN. SECURE BASE CONNECTION WITH TAP-CON SCREWS STAINLESS STEEL HOSE CLAMP HARGER VERTICAL BASE CONNECTOR SERIES 230V MEMBRANE FLASHING CONCRETE WALL PANEL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
