This one-hour fire-rated shaftwall head detail terminates a cold-formed steel stud partition against an overhead cross-laminated timber deck. A shaftwall deep leg metal deflection track matches the gauge of the wall studs and accommodates vertical movement. Four pounds per cubic foot density mineral wool insulation is compressed fifty percent inside the head track cavity, supplemented by flexible firestop sealant applied to the full depth of the gypsum board on both sides. Gypsum board is attached exclusively to the metal studs and left unfastened to the deflection track to allow proper deflection. The shaft side remains inaccessible while the interior side is accessible, with a maximum one-half inch joint referenced to structural expansion joint details.

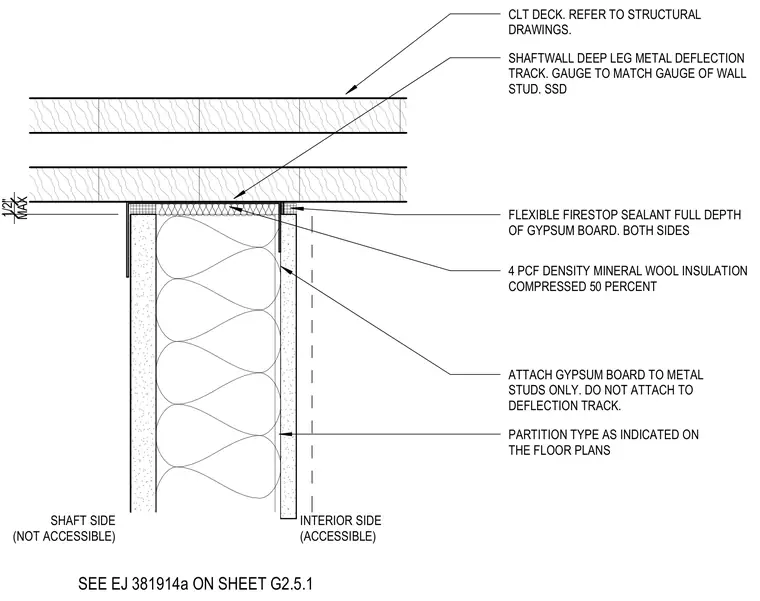

FLEXIBLE FIRESTOP SEALANT FULL DEPTH OF GYPSUM BOARD. BOTH SIDES 4 PCF DENSITY MINERAL WOOL INSULATION COMPRESSED 50 PERCENT CLT DECK. REFER TO STRUCTURAL DRAWINGS. SHAFTWALL DEEP LEG METAL DEFLECTION TRACK. GAUGE TO MATCH GAUGE OF WALL STUD. SSD ATTACH GYPSUM BOARD TO METAL STUDS ONLY. DO NOT ATTACH TO DEFLECTION TRACK. PARTITION TYPE AS INDICATED ON THE FLOOR PLANS SHAFT SIDE (NOT ACCESSIBLE) INTERIOR SIDE (ACCESSIBLE) MAX 1/2" SEE EJ 381914a ON SHEET G2.5.1
