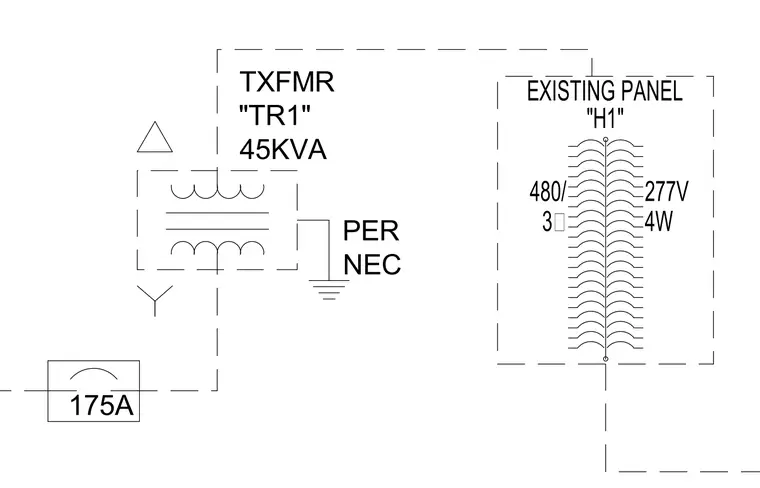

An existing electrical panel labeled H1 is fed by a 45 kilovolt-ampere transformer designated as TR1. The distribution system operates at 480/277 volts, 3-phase, 4-wire with grounding installed per the National Electrical Code. A 175-ampere protective device is connected inline between the transformer and the panel.
