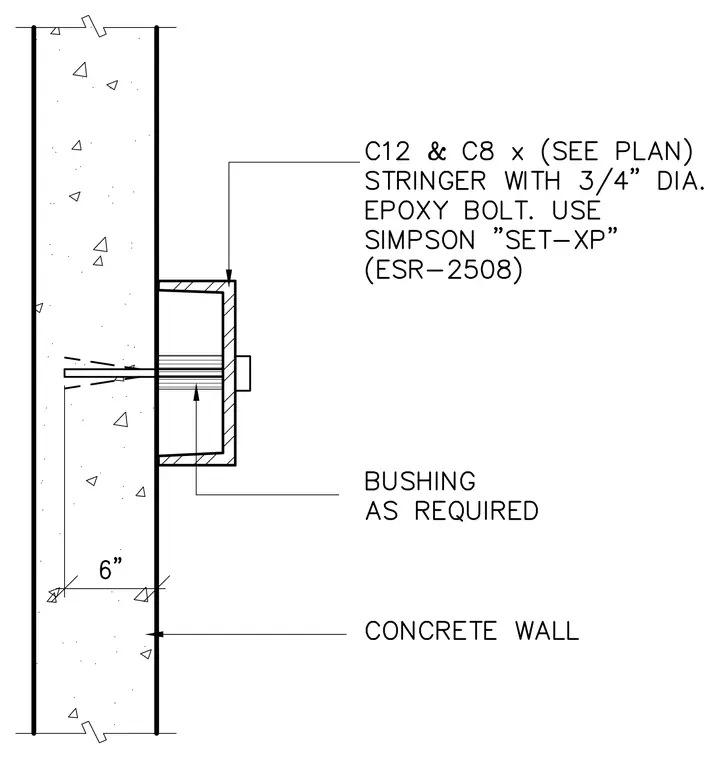

A built-up channel stringer composed of a C12 and C8 channel is anchored to a concrete wall using a three-quarter-inch-diameter epoxy bolt. The fastener uses a Simpson SET-XP adhesive system per ESR-2508 and is installed with a bushing as required. The stringer assembly bears against the face of the concrete wall with a vertical edge distance dimensioned on the drawing.
