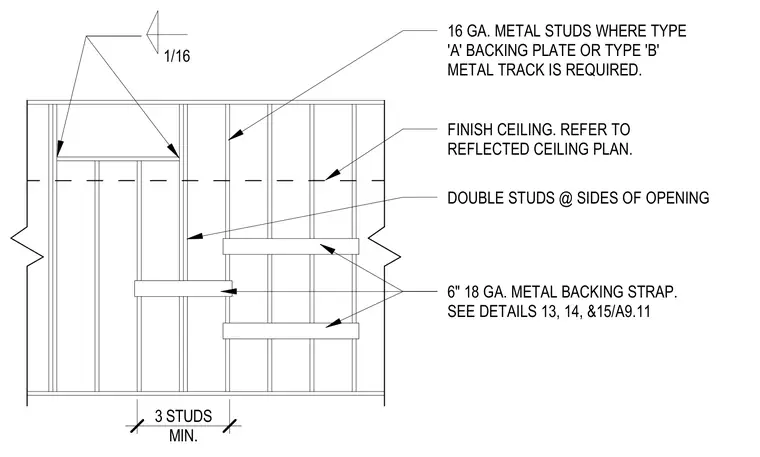

Double cold-formed steel studs frame the sides of wall openings with a minimum of three 16-gauge metal studs installed where a type A backing plate or type B metal track is required. Six-inch 18-gauge metal backing straps provide additional bracing across the studs. The finished ceiling height coordinates with the reflected ceiling plan.
MIN. 3 STUDS 16 GA. METAL STUDS WHERE TYPE 'A' BACKING PLATE OR TYPE 'B' METAL TRACK IS REQUIRED. FINISH CEILING. REFER TO REFLECTED CEILING PLAN. DOUBLE STUDS @ SIDES OF OPENING 6" 18 GA. METAL BACKING STRAP. SEE DETAILS 13, 14, &15/A9.11 1/16
