Architectural · A-VVJ3P

Tier 2 PT Slab Spandrel and Perforated Metal Panel Detail

Materials

Concrete Aluminum Metal (misc.)

Elements

Columns Beams Facades / Cladding Railings / Guards Floors / Slabs Decks

Connections

Deck Attachment

About this detail

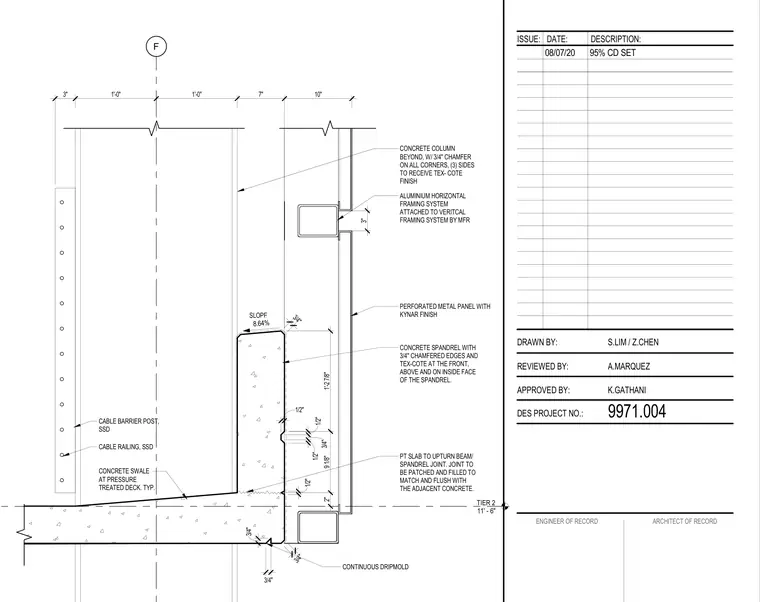

Tier two post-tensioned slab to upturn spandrel beam and joint assembly features a patched and filled finish flush with adjacent concrete. The concrete spandrel features three-quarter-inch chamfered edges and a Tex-Cote finish applied to the front, top, and inside faces. A perforated metal panel with a Kynar finish attaches to an aluminum horizontal framing system, which connects to the vertical framing system per the manufacturer. A concrete column extends beyond with three-quarter-inch chamfers on all corners and receives a Tex-Cote finish on three sides. A pressure-treated deck includes a concrete swale, a continuous dripmold, a cable railing, and stainless steel cable barrier posts.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
