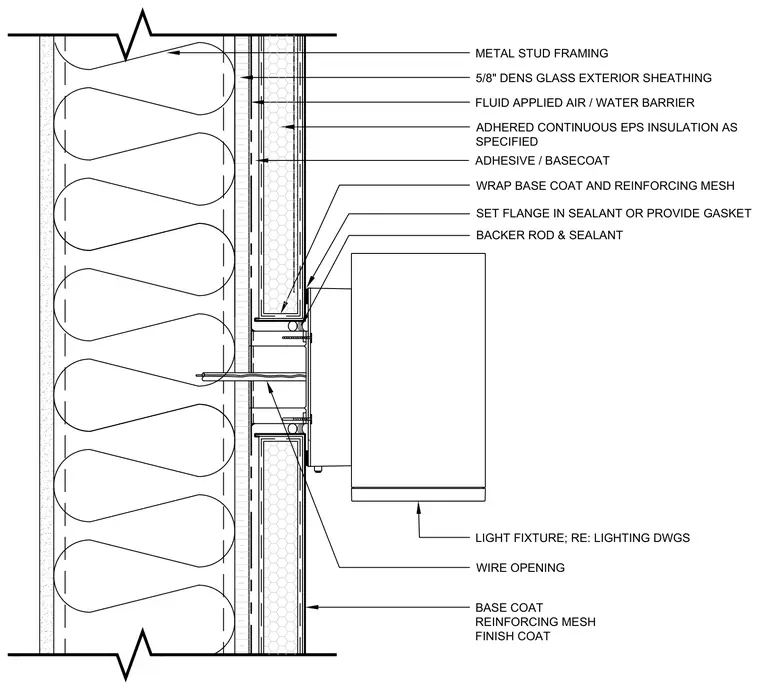

The assembly is built upon metal stud framing covered with five-eighths inch Dens-Glass exterior sheathing and a fluid-applied air and water barrier. Adhered continuous expanded polystyrene insulation is secured with an adhesive base coat, wrapping with a base coat and reinforcing mesh at terminations. The light fixture housing is mounted over a wire opening, with its flange set in sealant or provided with a gasket. Perimeter joints are sealed using backer rod and sealant, and the exterior surface is finished with a base coat, reinforcing mesh, and finish coat.
METAL STUD FRAMING 5/8" DENS GLASS EXTERIOR SHEATHING FLUID APPLIED AIR / WATER BARRIER ADHERED CONTINUOUS EPS INSULATION AS SPECIFIED WRAP BASE COAT AND REINFORCING MESH LIGHT FIXTURE; RE: LIGHTING DWGS WIRE OPENING BASE COAT REINFORCING MESH FINISH COAT SET FLANGE IN SEALANT OR PROVIDE GASKET BACKER ROD & SEALANT ADHESIVE / BASECOAT
