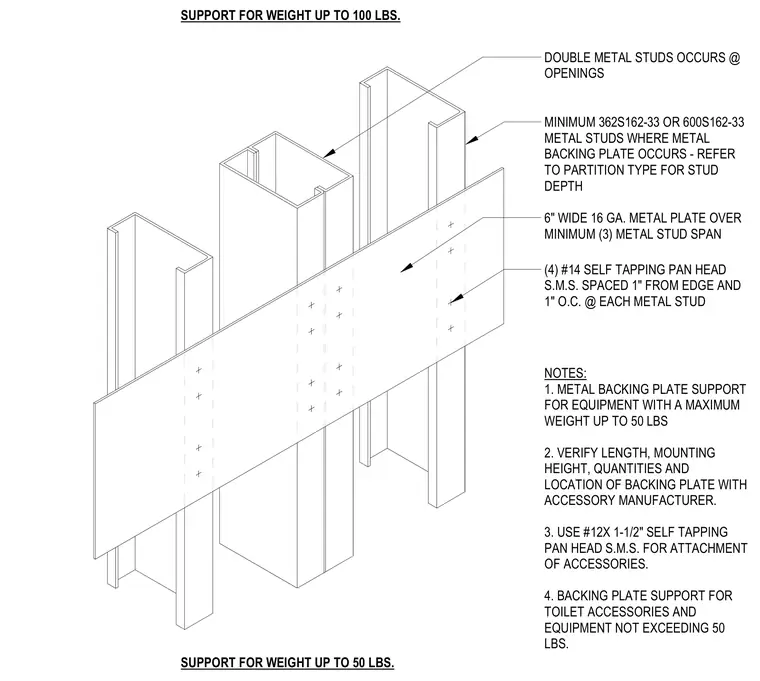

This isometric detail shows a six-inch wide, sixteen-gauge metal plate spanning across a minimum of three cold-formed metal studs to support wall-mounted equipment and accessories up to fifty pounds. The backing plate attaches to the framing using four number fourteen self-tapping pan head sheet metal screws spaced one inch from the edge and one inch on center at each metal stud. Double metal studs occur at openings with minimum 362S162-33 or 600S162-33 stud sizes depending on the partition type. Number twelve by one-and-one-half-inch self-tapping pan head sheet metal screws secure accessories to the backing plate.
SUPPORT FOR WEIGHT UP TO 100 LBS. SUPPORT FOR WEIGHT UP TO 50 LBS. DOUBLE METAL STUDS OCCURS @ OPENINGS MINIMUM 362S162-33 OR 600S162-33 METAL STUDS WHERE METAL BACKING PLATE OCCURS - REFER TO PARTITION TYPE FOR STUD DEPTH 6" WIDE 16 GA. METAL PLATE OVER MINIMUM (3) METAL STUD SPAN (4) #14 SELF TAPPING PAN HEAD S.M.S. SPACED 1" FROM EDGE AND 1" O.C. @ EACH METAL STUD NOTES: 1. METAL BACKING PLATE SUPPORT FOR EQUIPMENT WITH A MAXIMUM WEIGHT UP TO 50 LBS 2. VERIFY LENGTH, MOUNTING HEIGHT, QUANTITIES AND LOCATION OF BACKING PLATE WITH ACCESSORY MANUFACTURER. 3. USE #12X 1-1/2" SELF TAPPING PAN HEAD S.M.S. FOR ATTACHMENT OF ACCESSORIES. 4. BACKING PLATE SUPPORT FOR TOILET ACCESSORIES AND EQUIPMENT NOT EXCEEDING 50 LBS.
