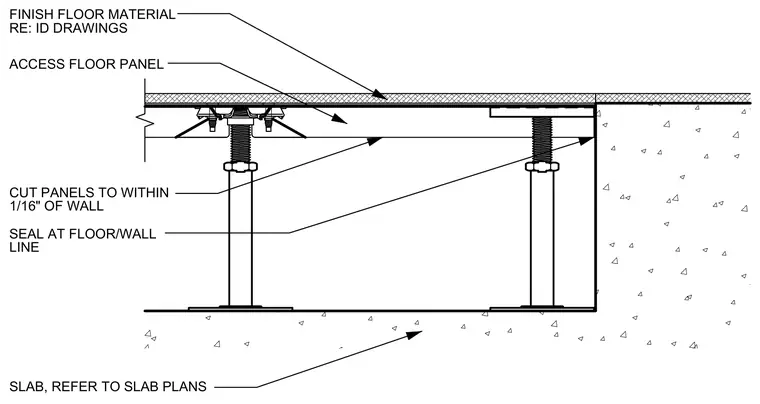

Access floor panels are supported on adjustable pedestals bearing on a concrete slab, with finish floor material applied to the top surface. Cut panels are detailed to fit within one-sixteenth of an inch of the adjoining wall. A joint seal is applied at the floor-to-wall line.
ACCESS FLOOR PANEL CUT PANELS TO WITHIN 1/16" OF WALL SEAL AT FLOOR/WALL LINE SLAB, REFER TO SLAB PLANS FINISH FLOOR MATERIAL RE: ID DRAWINGS
