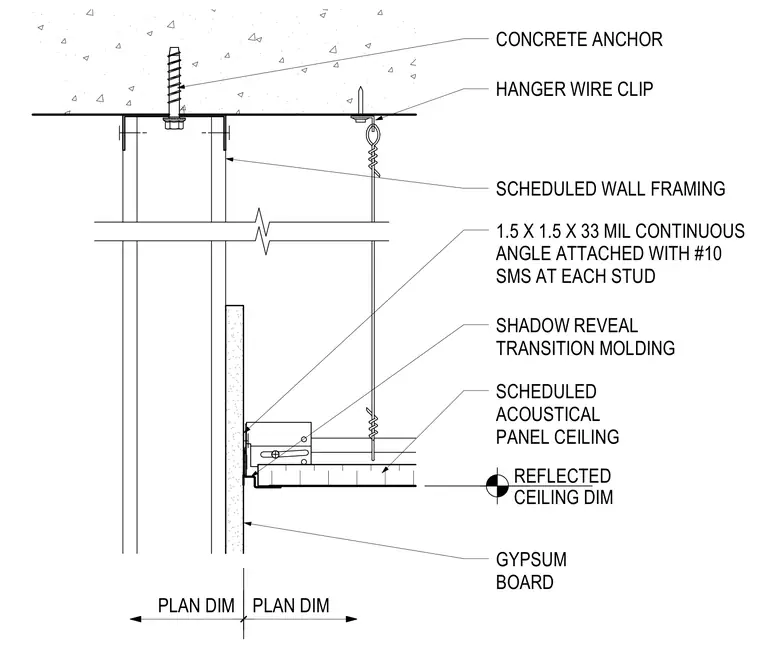

An acoustical panel ceiling transitions to a gypsum board wall using a continuous 1.5 x 1.5 inch 33 mil angle attached with number 10 sheet metal screws at each stud. A shadow reveal transition molding interfaces with the scheduled acoustical panel ceiling, which is supported by hanger wire clips secured to the concrete overhead. Scheduled wall framing with gypsum board extends upward to the concrete anchor connection.
REFLECTED CEILING DIM 1.5 X 1.5 X 33 MIL CONTINUOUS ANGLE ATTACHED WITH #10 SMS AT EACH STUD CONCRETE ANCHOR SCHEDULED ACOUSTICAL PANEL CEILING HANGER WIRE CLIP SCHEDULED WALL FRAMING GYPSUM BOARD SHADOW REVEAL TRANSITION MOLDING PLAN DIM PLAN DIM
