Architectural · A-VV38B

1-Hr Rated Furring at Column

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

About this detail

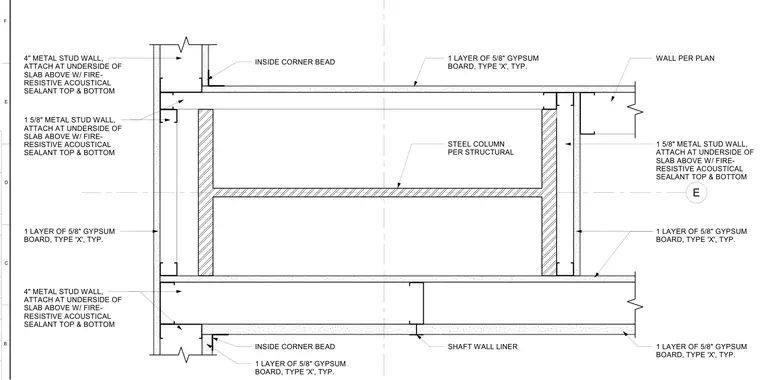

A one-hour fire-rated furring assembly built around a structural steel column using cold-formed metal stud framing. The assembly is finished with one layer of five-eighths-inch Type X gypsum board on each side, secured with inside corner beads where applicable. Metal stud walls of one-and-a-fiftieth-inch and four-inch sizes attach at the underside of the slab above with fire-resistive acoustical sealant applied at the top and bottom joints. Shaft wall liner is incorporated into the furring configuration per the architectural layout.
