Architectural · A-VTXDZ

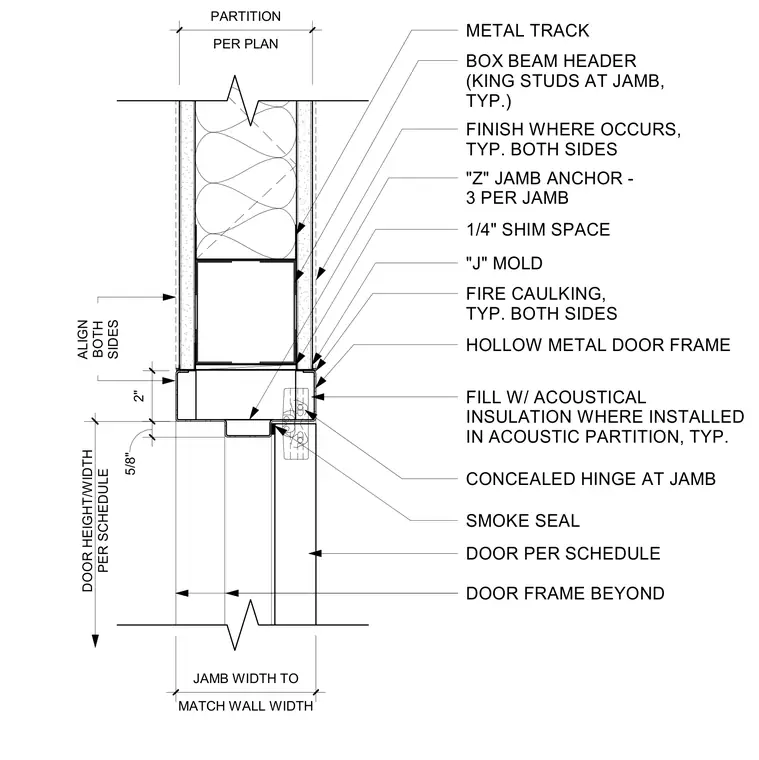

Interior Flush Metal Door Frame Jamb Detail

Materials

Elements

Beams Walls Partitions Doors Insulation Anchors / Embeds

About this detail

An interior hollow metal door frame integrates with a metal stud partition matched to the wall width, utilizing a box beam header and king studs at the jamb. Three Z-jamb anchors secure each side of the frame, maintaining a one-quarter-inch shim space sealed with fire caulking on both sides. A J-mold finishes the gypsum board edge adjacent to the frame, which includes a concealed hinge and smoke seal. The frame is filled with acoustical insulation when installed in an acoustic partition.
