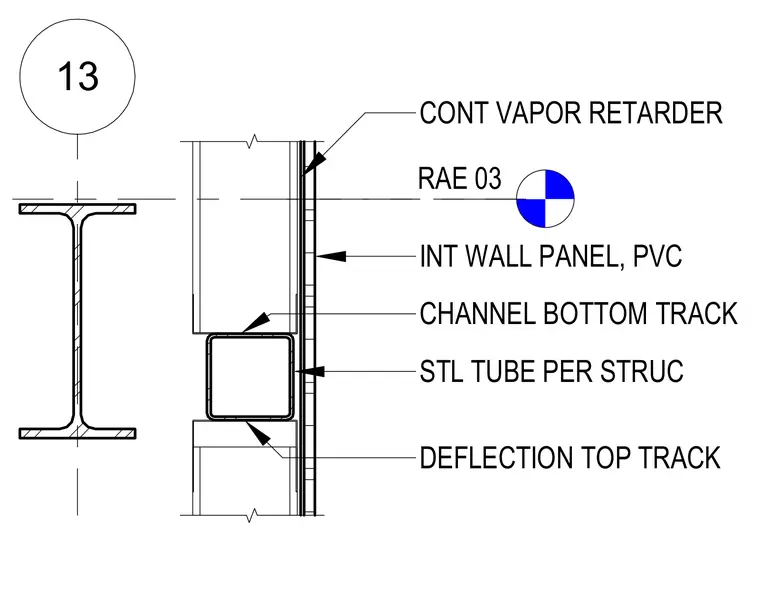

A continuous vapor retarder runs along the face of the interior wall assembly behind PVC interior wall panels. A steel tube member is positioned per structural requirements between a channel bottom track and a deflection top track. The assembly accommodates vertical movement at the deflection track adjacent to structural steel framing.
RAE 03 CONT VAPOR RETARDER 13 INT WALL PANEL, PVC STL TUBE PER STRUC CHANNEL BOTTOM TRACK DEFLECTION TOP TRACK
