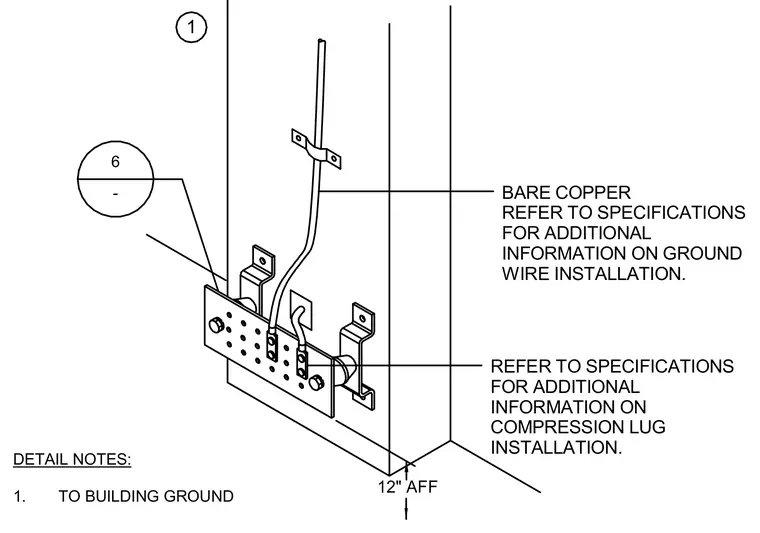

A building ground busbar is mounted to a wall at twelve inches above finished floor with supporting brackets. A bare copper ground wire connects to the busbar using compression lugs. Detail notes specify connection to the building ground and reference project specifications for additional installation requirements.
12" AFF 6 - 1 DETAIL NOTES: 1. TO BUILDING GROUND BARE COPPER REFER TO SPECIFICATIONS FOR ADDITIONAL INFORMATION ON GROUND WIRE INSTALLATION. REFER TO SPECIFICATIONS FOR ADDITIONAL INFORMATION ON COMPRESSION LUG INSTALLATION.
