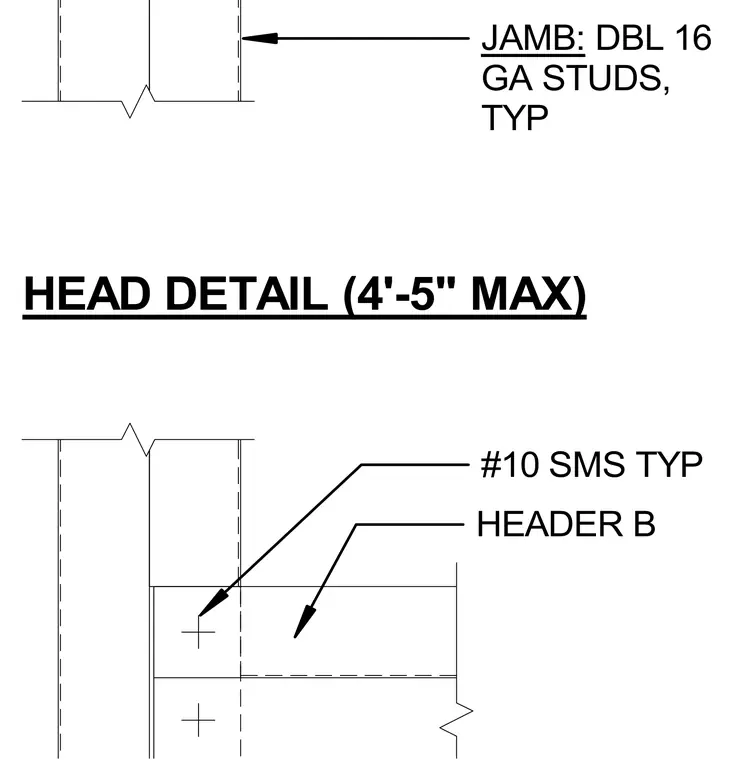

The head detail accommodates openings up to four feet five inches maximum. The jambs consist of double sixteen-gauge studs tied together with typical number ten sheet metal screws. Header B bears on the jamb assembly and is secured with typical number ten sheet metal screws.
