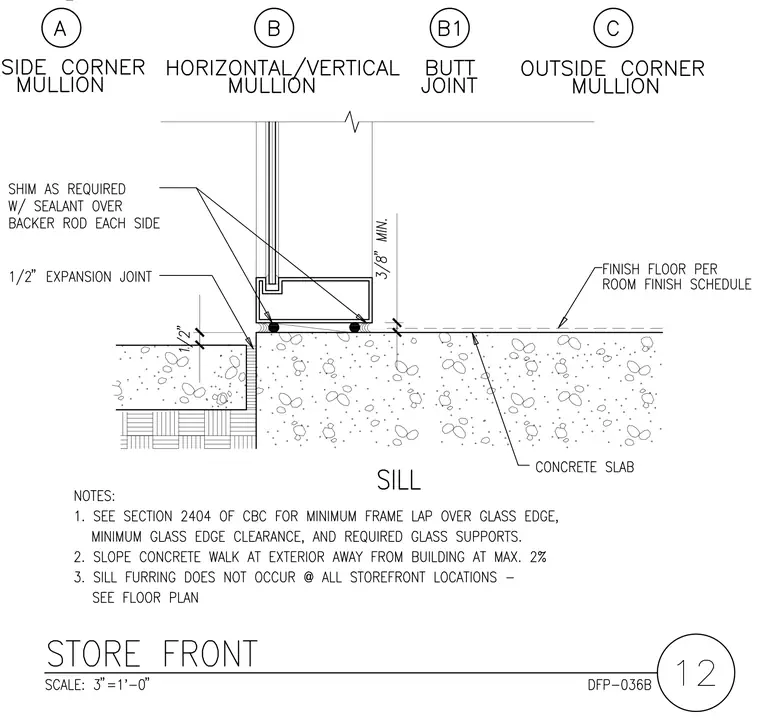

The aluminum storefront sill member rests on a concrete slab with shims and sealant over backer rod applied to each side. A half-inch expansion joint separates the exterior walkway from the interior finish floor. The glazing unit maintains a three-eighth-inch minimum clearance above the slab. The exterior concrete walk slopes away from the building at a maximum of two percent. Finish flooring is installed per the room finish schedule, and sill furring is coordinated with the floor plan.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
