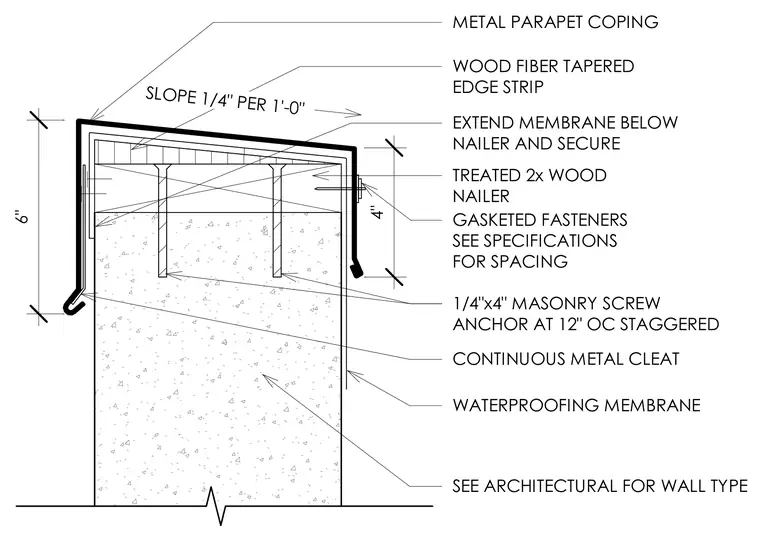

A treated two-by wood nailer is anchored to the top of the masonry wall with one-quarter-inch by four-inch masonry screw anchors at twelve inches on center staggered. A wood fiber tapered edge strip rests on the nailer to provide a slope of one-quarter inch per foot. A waterproofing membrane extends below the nailer and is secured to the wall. A continuous metal cleat is fastened to the exterior face, and a metal parapet coping fits over the assembly using gasketed fasteners spaced per specifications.
TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE
