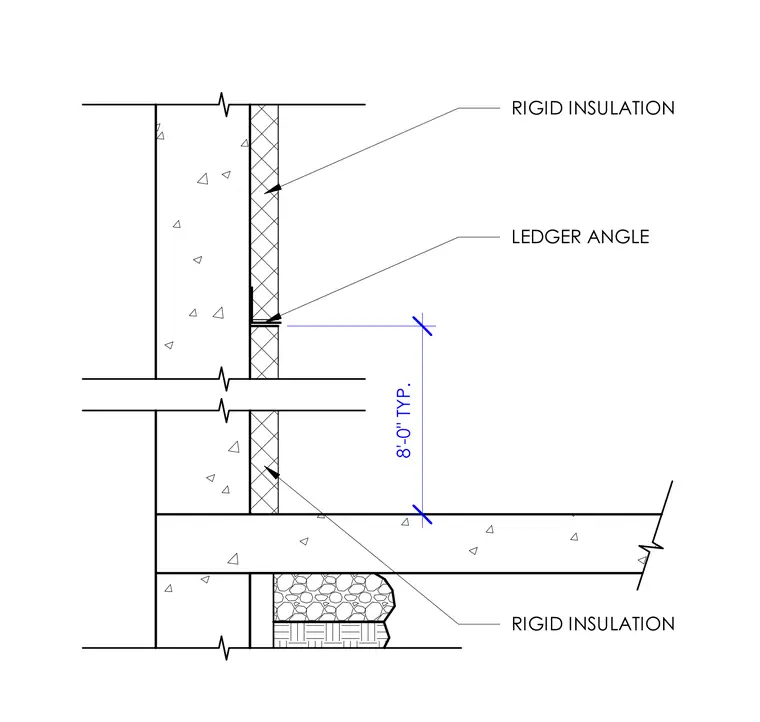

Continuous rigid insulation is applied across the exterior face of the concrete wall assembly. A ledger angle is secured to the wall to support exterior cladding or components, spaced at eight feet typically above the floor level. Additional rigid insulation continues below the floor slab line.
8'-0" TYP. RIGID INSULATION RIGID INSULATION LEDGER ANGLE
