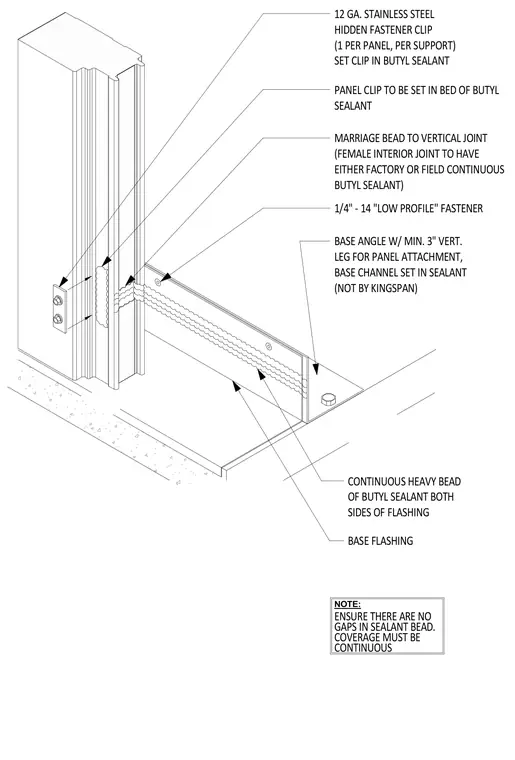

Metal panel base flashing assembly secured at the foundation interface with a base angle and channel set in sealant. A 12-gauge stainless steel hidden fastener clip is embedded in a bed of butyl sealant and fastened with a 1/4-14 low-profile fastener, using one clip per panel per support. Continuous heavy beads of butyl sealant are applied to both sides of the base flashing and along the vertical joint interface with a continuous marriage bead. All sealant coverages must be continuous without gaps.
NOTE: ENSURE THERE ARE NO GAPS IN SEALANT BEAD. COVERAGE MUST BE CONTINUOUS MARRIAGE BEAD TO VERTICAL JOINT (FEMALE INTERIOR JOINT TO HAVE EITHER FACTORY OR FIELD CONTINUOUS BUTYL SEALANT) BASE FLASHING CONTINUOUS HEAVY BEAD OF BUTYL SEALANT BOTH SIDES OF FLASHING PANEL CLIP TO BE SET IN BED OF BUTYL SEALANT 12 GA. STAINLESS STEEL HIDDEN FASTENER CLIP (1 PER PANEL, PER SUPPORT) SET CLIP IN BUTYL SEALANT BASE ANGLE W/ MIN. 3" VERT. LEG FOR PANEL ATTACHMENT, BASE CHANNEL SET IN SEALANT (NOT BY KINGSPAN) 1/4" - 14 "LOW PROFILE" FASTENER
