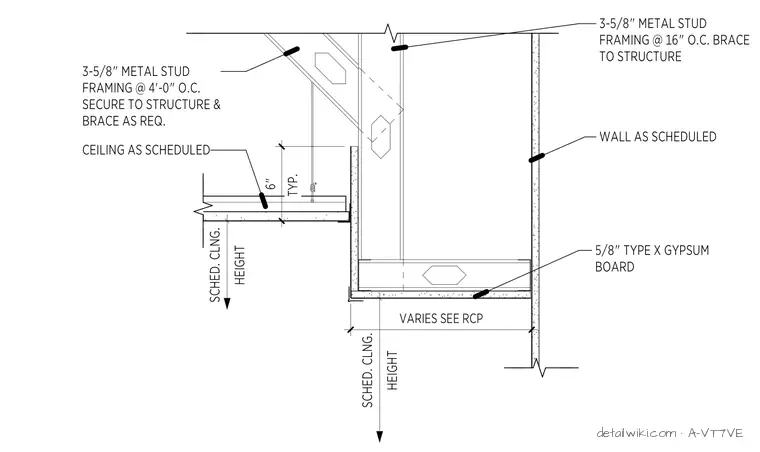

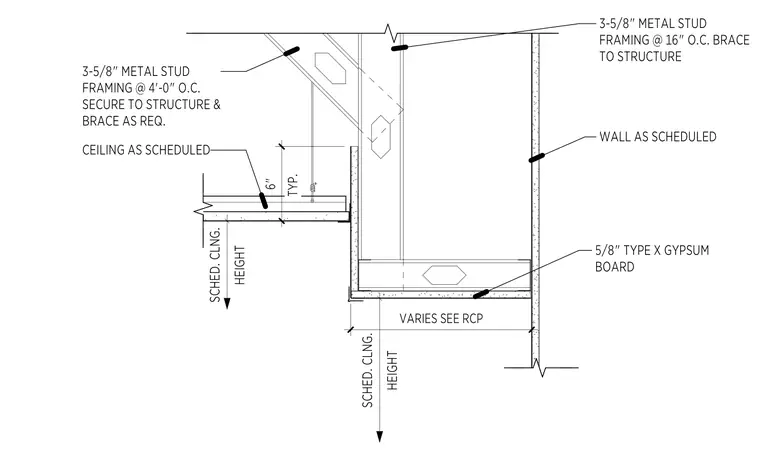

This assembly features a dropped ceiling soffit framed with 3-5/8 inch metal studs spaced at 4 feet on center, which are secured to the structure and braced as required. The vertical and horizontal soffit faces are finished with 5/8 inch Type X gypsum board. The main ceiling plane is constructed per the ceiling schedule, with a typical 6 inch vertical offset from the soffit framing. The wall assembly is finished as scheduled, and the soffit depth varies as indicated on the reflected ceiling plan. Diagonal bracing using 3-5/8 inch metal studs at 16 inches on center provides lateral support to the structure.
