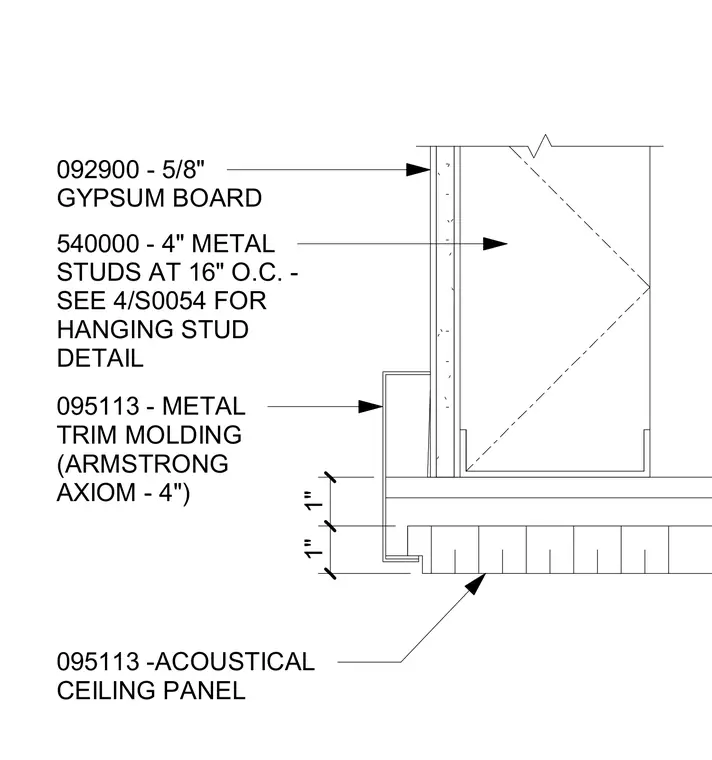

An acoustical ceiling panel terminates at a metal trim molding, specifically an Armstrong Axiom 4-inch profile. The wall framing consists of 4-inch metal studs spaced at 16 inches on center, finished with a 5/8-inch gypsum board layer. A hanging stud detail reference points to sheet 4/S0054 for structural support requirements.
095113 -ACOUSTICAL CEILING PANEL 092900 - 5/8" GYPSUM BOARD 540000 - 4" METAL STUDS AT 16" O.C. - SEE 4/S0054 FOR HANGING STUD DETAIL 095113 - METAL TRIM MOLDING (ARMSTRONG AXIOM - 4") 1" 1"
