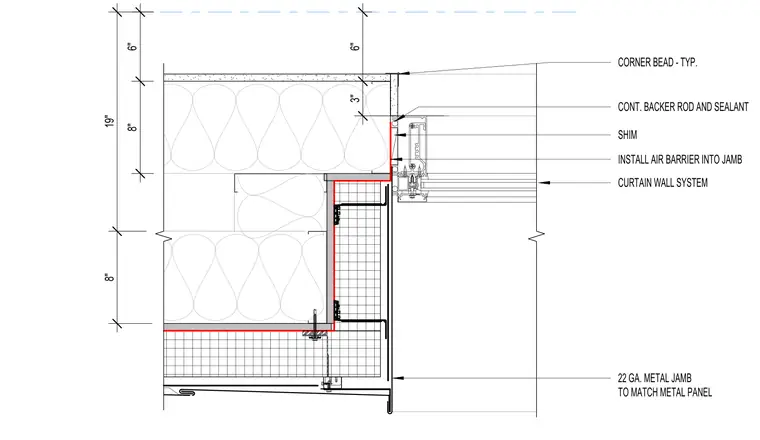

The curtain wall system meets a twenty-two gauge metal jamb matching the exterior metal panel. Shims level the window frame alignment against the wall framing, while the air barrier is tucked continuously into the jamb corner. A continuous backer rod and sealant joint seal the interface between the framing and the curtain wall mullion. A typical corner bead finishes the interior wall corner adjacent to the assembly.
CURTAIN WALL SYSTEM SHIM INSTALL AIR BARRIER INTO JAMB CORNER BEAD - TYP. 8" 6" 8" 19" 3" 6" CONT. BACKER ROD AND SEALANT 22 GA. METAL JAMB TO MATCH METAL PANEL
