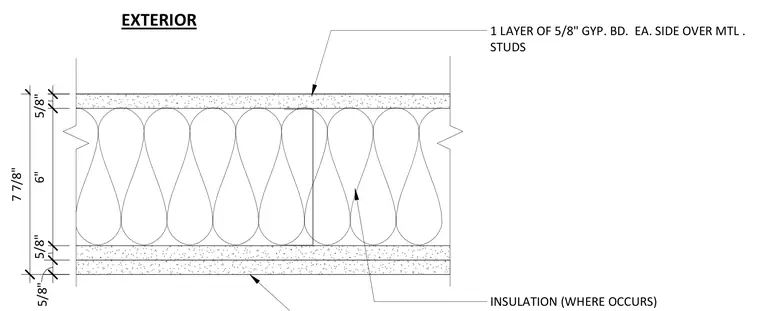

Metal studs are faced on each side with one layer of 5/8-inch gypsum board. Insulation is included in the stud cavity where specified. The overall thickness of the wall assembly measures 7-7/8 inches.
INSULATION (WHERE OCCURS) 1 LAYER OF 5/8" GYP. BD. EA. SIDE OVER MTL . STUDS 7 7/8" EXTERIOR 5/8" 6" 5/8" 5/8"
