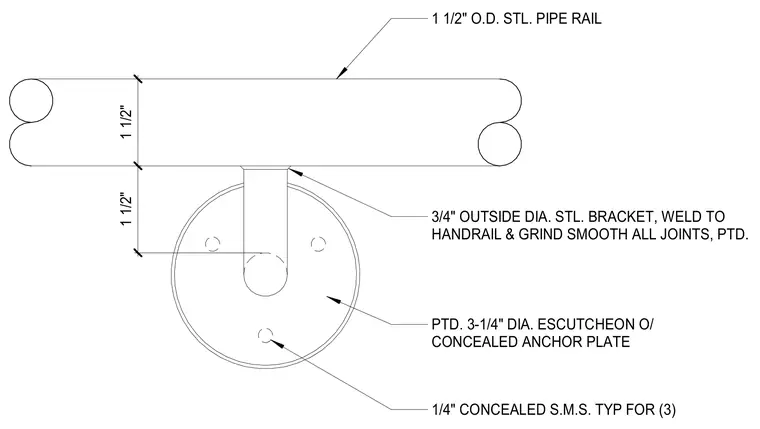

A one-and-a-half-inch outside diameter painted steel pipe rail connects to a three-quarter-inch outside diameter steel bracket welded directly to the handrail with all joints ground smooth and painted. The bracket mounts to a concealed anchor plate using three typical one-quarter-inch concealed sheet metal screws. A three-and-one-quarter-inch diameter painted escutcheon conceals the anchor plate and fasteners against the mounting surface.
3/4" OUTSIDE DIA. STL. BRACKET, WELD TO HANDRAIL & GRIND SMOOTH ALL JOINTS, PTD. 1 1/2" O.D. STL. PIPE RAIL 1/4" CONCEALED S.M.S. TYP FOR (3) PTD. 3-1/4" DIA. ESCUTCHEON O/ CONCEALED ANCHOR PLATE 1 1/2" 1 1/2"
