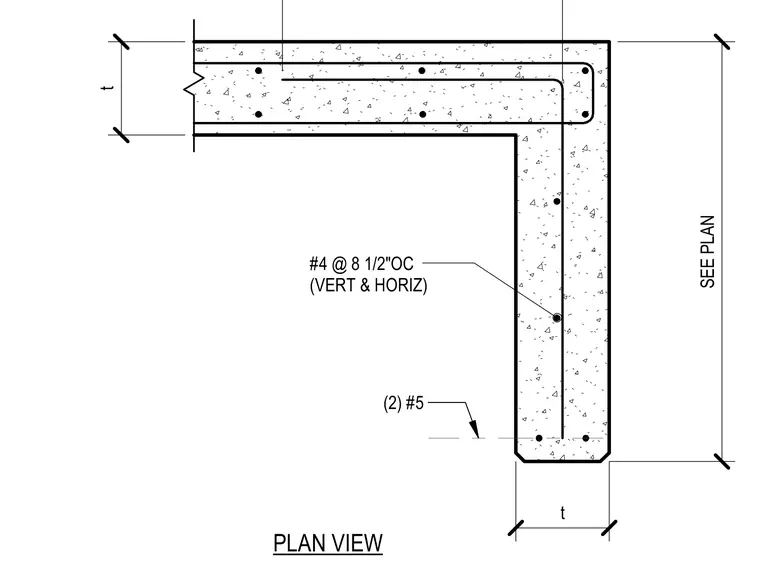

This plan view shows a reinforced concrete wall corner with a thickness of t, detailed with number 4 reinforcing bars spaced at eight and one-half inches on center both vertically and horizontally. Two number 5 reinforcing bars are placed at the corner return. Wall dimensions are sized per plan.
