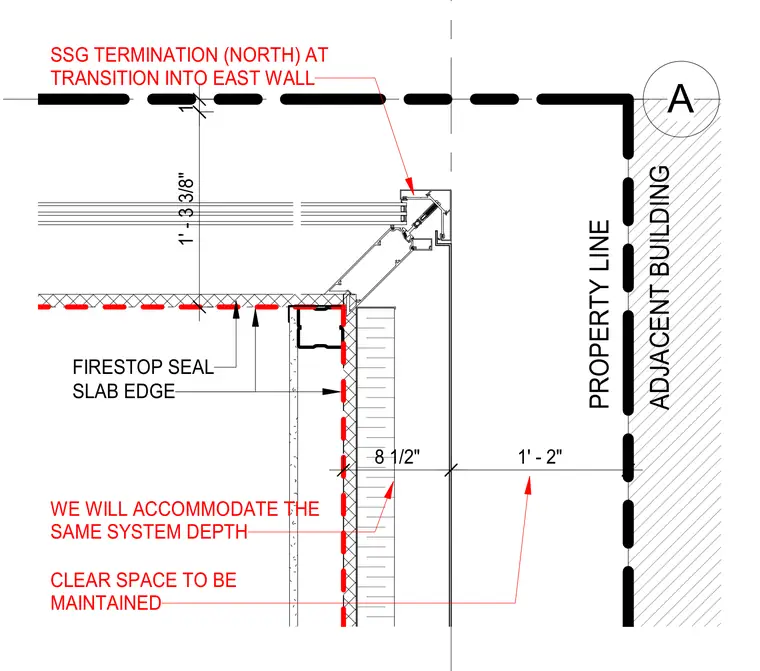

The plan detail shows a structural silicone-glazed curtain wall termination transitioning into an east wall metal panel assembly at the northeast building corner. A slab edge with a firestop seal is indicated adjacent to the exterior wall build-up. Dimensioning establishes an 8 1/2 inch wall assembly depth and a 1 foot 2 inch clear space to the adjacent building property line. The system maintains consistent depth across the corner transition.
A SLAB EDGE FIRESTOP SEAL SSG TERMINATION (NORTH) AT TRANSITION INTO EAST WALL 1" ADJACENT BUILDING PROPERTY LINE 1' - 2" 8 1/2" 1' - 3 3/8" WE WILL ACCOMMODATE THE SAME SYSTEM DEPTH CLEAR SPACE TO BE MAINTAINED
