Wood Veneer Wall Section Detail

Materials

Elements

About this detail

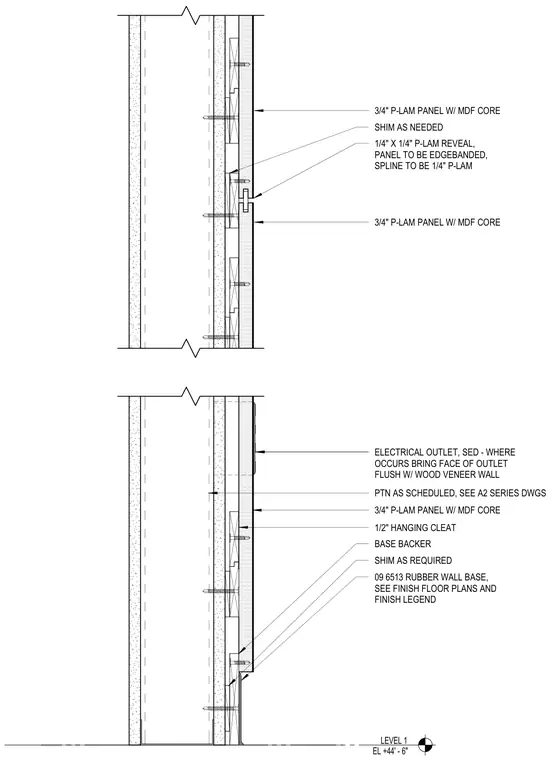

Three-quarter-inch plastic laminate panels with medium-density fiberboard cores are mounted on half-inch hanging cleats and base backers, with shims used as needed for alignment. A quarter-inch by quarter-inch plastic laminate reveal separates panels, featuring edgebanded panel edges and a quarter-inch plastic laminate spline. A rubber wall base is installed at the bottom of the assembly above the finished floor level at elevation plus forty-four feet six inches. Electrical outlets occur where indicated, with the face brought flush to the wood veneer wall finish.
