This interior wall partition consists of steel studs with gypsum wallboard primary layers extending to the structure. A sound attenuation blanket fills the stud cavity for acoustic control. Overall assembly thickness varies with stud size, measuring four and seven-eighths inches for three and five-eighths inch studs, five and one-quarter inches for four-inch studs, and seven and one-quarter inches for six-inch studs. At one-hour fire-rated locations, the assembly conforms to Gypsum Association file number WP 1072.

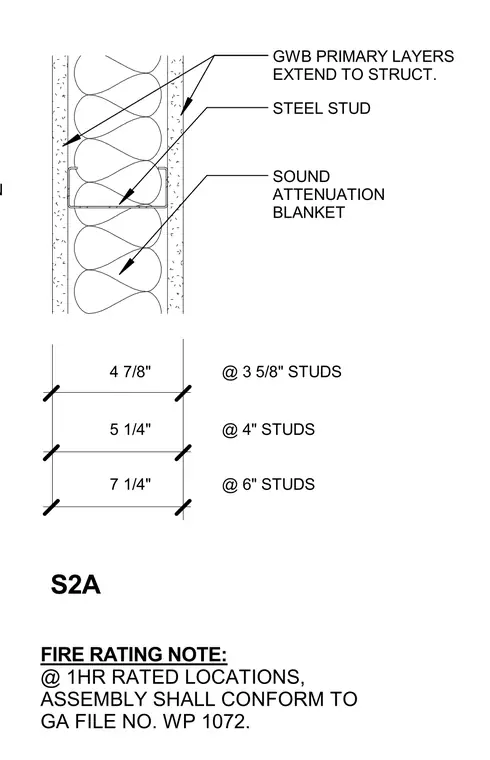

STEEL STUD GWB PRIMARY LAYERS EXTEND TO STRUCT. 4 7/8" @ 3 5/8" STUDS 5 1/4" @ 4" STUDS 7 1/4" @ 6" STUDS SOUND ATTENUATION BLANKET S2A FIRE RATING NOTE: @ 1HR RATED LOCATIONS, ASSEMBLY SHALL CONFORM TO GA FILE NO. WP 1072. WALL TAG IS PLACED IN PLAN ON SIDE OF WALL
