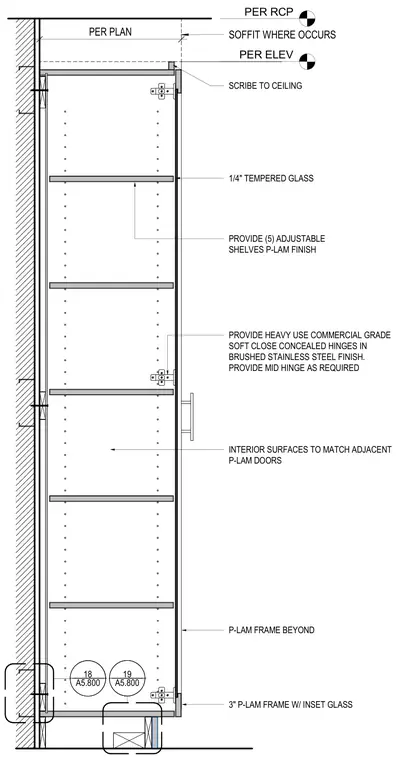

This full height commercial cabinet features a plastic laminate frame with inset glass doors and five adjustable shelves with a plastic laminate finish. Heavy-use commercial grade soft-close concealed hinges in a brushed stainless steel finish are provided with a mid hinge as required. The interior surfaces are finished to match adjacent plastic laminate doors, and the top scribe fits to the ceiling or soffit per plan and elevation.
PER PLAN SOFFIT WHERE OCCURS 1/4" TEMPERED GLASS PROVIDE (5) ADJUSTABLE SHELVES P-LAM FINISH INTERIOR SURFACES TO MATCH ADJACENT P-LAM DOORS PER RCP SCRIBE TO CEILING ________ ________ 19 A5.800 ________ ________ 18 A5.800 PER ELEV PROVIDE HEAVY USE COMMERCIAL GRADE SOFT CLOSE CONCEALED HINGES IN BRUSHED STAINLESS STEEL FINISH. PROVIDE MID HINGE AS REQUIRED 3" P-LAM FRAME W/ INSET GLASS P-LAM FRAME BEYOND
