Architectural · A-VQYMR

Roof Drain Penetration and Flashing Detail

Materials

Elements

Roofs Waterproofing / Flashing Insulation Drainage Roof / Floor Openings

About this detail

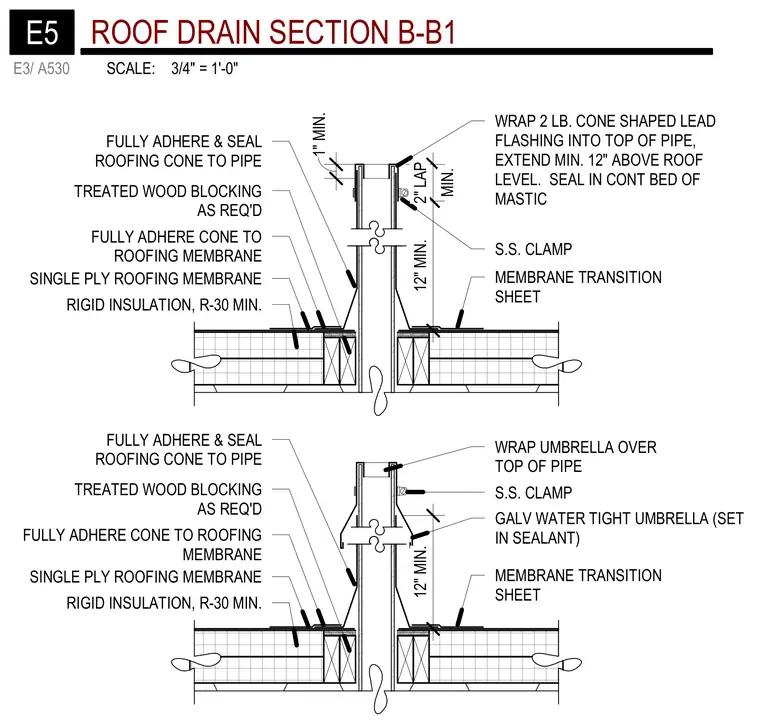

A roof drain pipe penetration passes through a single-ply insulated roof assembly. The penetration passes through rigid insulation rated at a minimum of R-30 and treated wood blocking as required. A cone-shaped lead flashing is wrapped into the top of the pipe, extending a minimum of 12 inches above the roof level, and set in a continuous bed of mastic with a minimum 2-inch lap. A membrane transition sheet fully adheres the roofing cone to the single-ply roofing membrane. A stainless steel clamp secures the assembly, complemented by a galvanized watertight umbrella set in sealant wrapped over the top of the pipe.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
