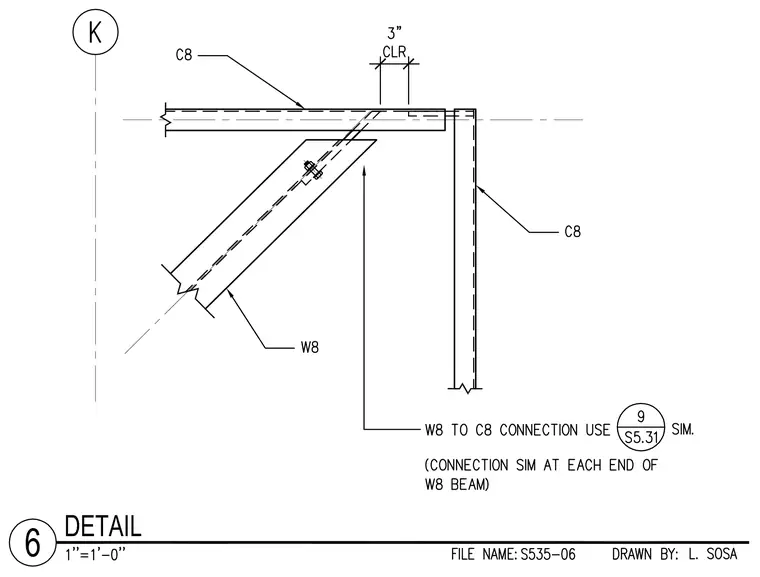

A diagonal W8 wide-flange steel member frames into a C8 channel with a three-inch clearance maintained at the end. The connection utilizes a bolted joint as indicated by standard callouts referencing detail 9 on sheet S5.31. A similar connection is required at each end of the W8 beam.
