Electrical outlet boxes are installed within a wall assembly specified per plan. Back-to-back outlet boxes maintain a minimum horizontal spacing of twenty-four inches. An acoustic pad wraps the outlet box to maintain wall assembly ratings. An additional layer of five-eighths-inch Type X gypsum board is provided.

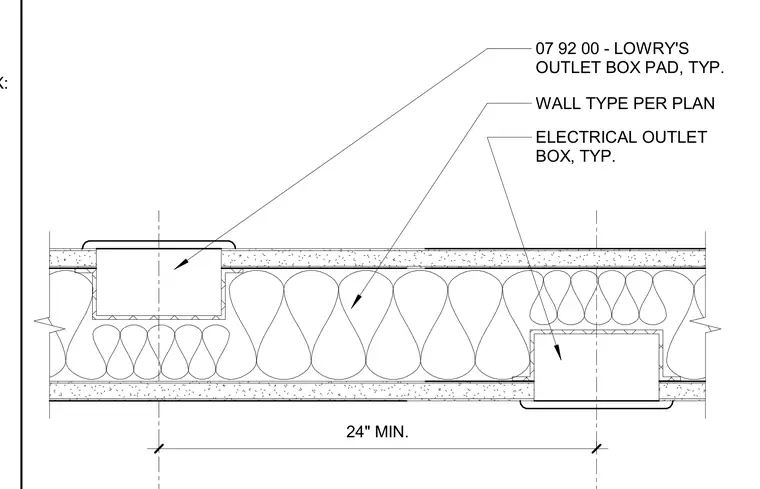

ELECTRICAL OUTLET BOX, TYP. 07 92 00 - LOWRY'S OUTLET BOX PAD, TYP. 24" MIN. WALL TYPE PER PLAN ADDITIONAL LAYER 5/8" TYPE "X:
