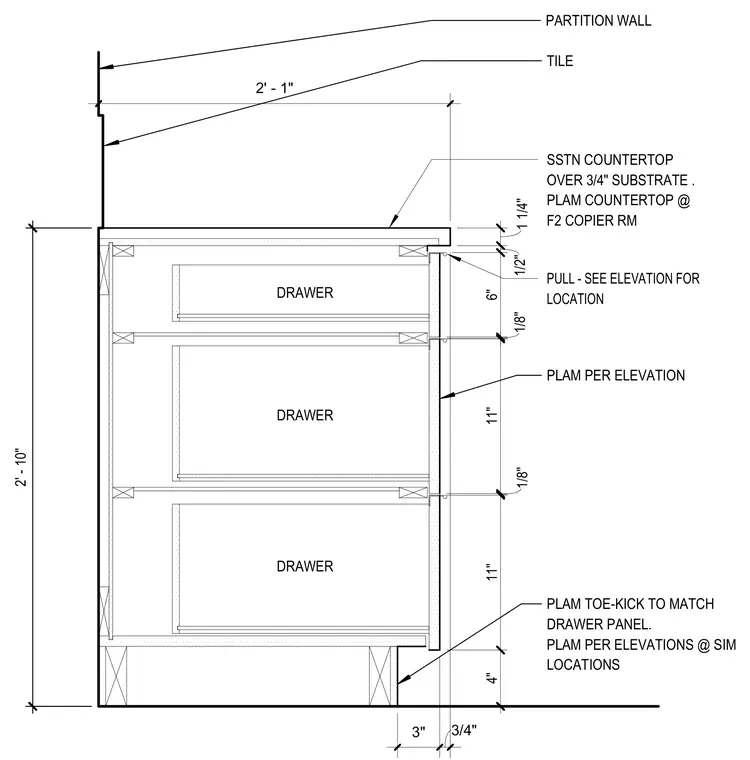

A plastic laminate finished drawer cabinet features a three-tier drawer stack with a four-inch toe-kick and a solid-surface or plastic laminate countertop over a three-quarter-inch substrate. The cabinet stands against a partition wall finished with tile. Drawer pulls are located per elevations, and the assembly is detailed with a total height of two feet ten inches.
2' - 1" 3" 3/4" SSTN COUNTERTOP OVER 3/4" SUBSTRATE . PLAM COUNTERTOP @ F2 COPIER RM DRAWER DRAWER DRAWER 2 ' - 1 0 " TILE PARTITION WALL P U L L - S E E E L E V A T I O N F O R L O C A T I O N 1 1 / 4 " 1 / 2 " 6 " 1 / 8 " 1 1 " 1 / 8 " 1 1 " 4 " PLAM PER ELEVATION PLAM TOE-KICK TO MATCH DRAWER PANEL. PLAM PER ELEVATIONS @ SIM LOCATIONS
