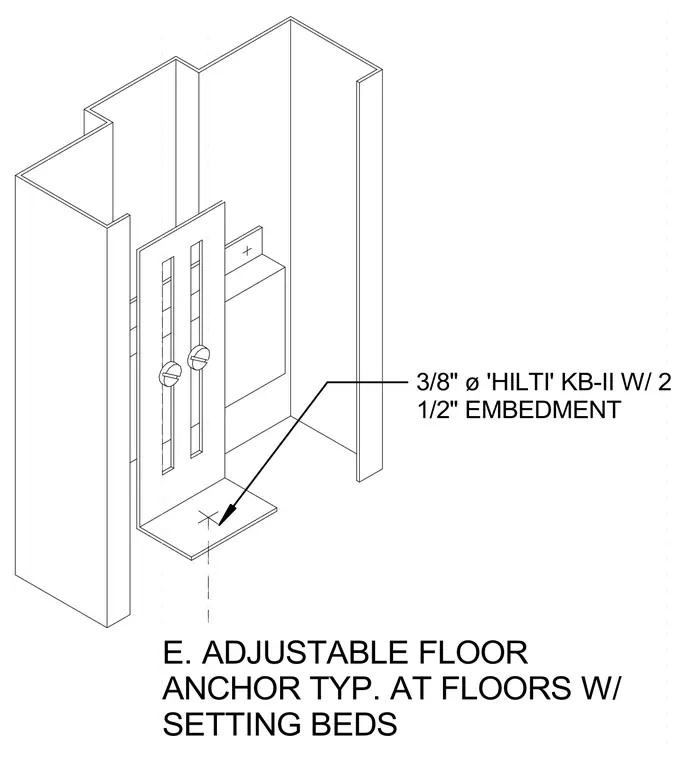

An adjustable metal floor anchor bracket is secured to the substrate using a three-eighths inch diameter Hilti KB-II expansion anchor with two and a half inches of embedment. This assembly is typical at floors with setting beds.
3/8" ø 'HILTI' KB-II W/ 2 1/2" EMBEDMENT E. ADJUSTABLE FLOOR ANCHOR TYP. AT FLOORS W/ SETTING BEDS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
