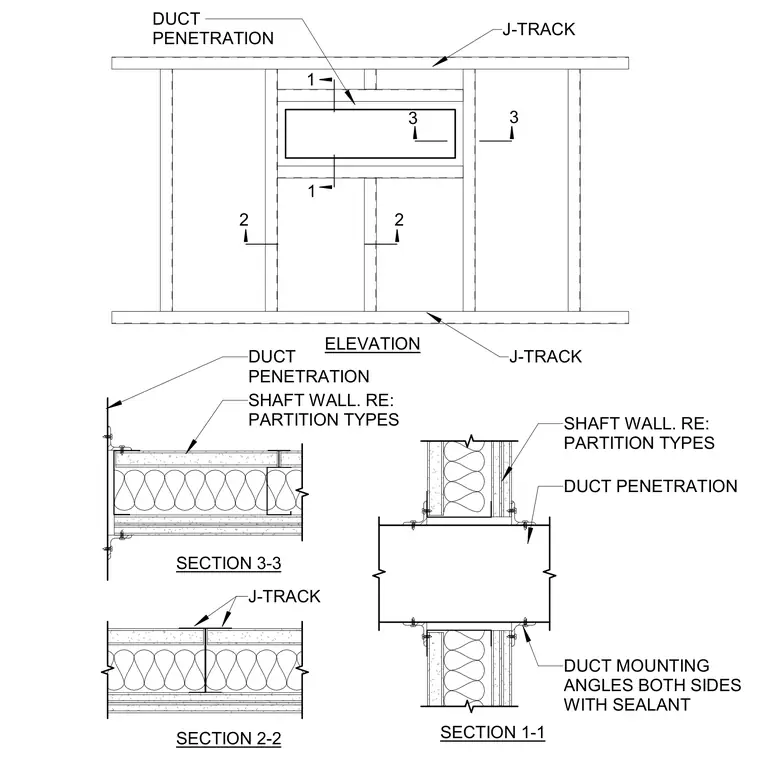

Duct mounting angles are installed on both sides of the shaft wall at duct penetrations, sealed with joint sealant. The wall assembly utilizes J-track top and bottom runners with metal stud framing per partition type schedules. Sections 1-1, 2-2, and 3-3 detail the duct mounting and framing conditions around the penetration.
DUCT MOUNTING ANGLES BOTH SIDES WITH SEALANT SHAFT WALL. RE: PARTITION TYPES SECTION 1-1 DUCT PENETRATION SECTION 2-2 SECTION 3-3 DUCT PENETRATION SHAFT WALL. RE: PARTITION TYPES J-TRACK ELEVATION 3 3 1 1 2 2 J-TRACK J-TRACK DUCT PENETRATION
