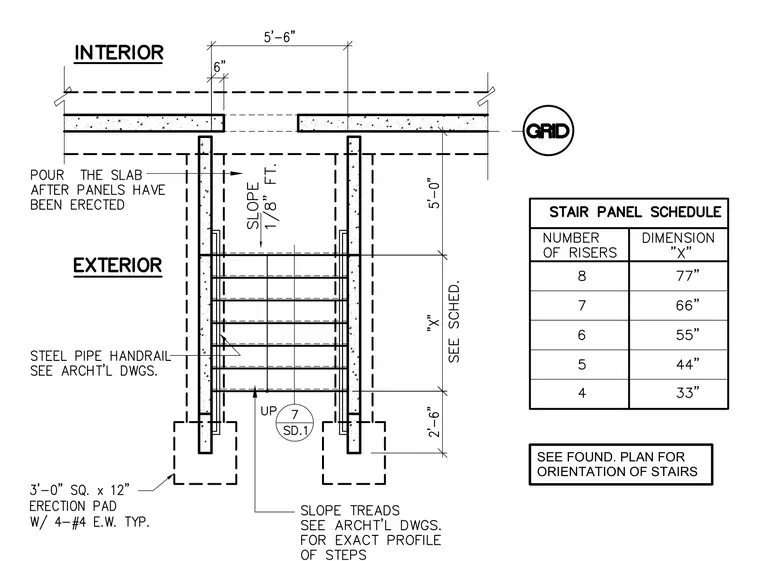

Exterior stair panel layout and orientation relative to the interior concrete slab edge. The precast stair panels bear on three-foot square by twelve-inch thick concrete erection pads reinforced with four number four bars each way typically. The assembly coordinates the 5'-6" stair width and includes a slope of 1/8" per foot away from the building. A stair panel schedule correlates the number of risers with dimension X, ranging from thirty-three inches for four risers up to seventy-seven inches for eight risers. Steel pipe handrails are provided per architectural drawings, and the slab is poured after the panels have been erected.
SEE FOUND. PLAN FOR ORIENTATION OF STAIRS
