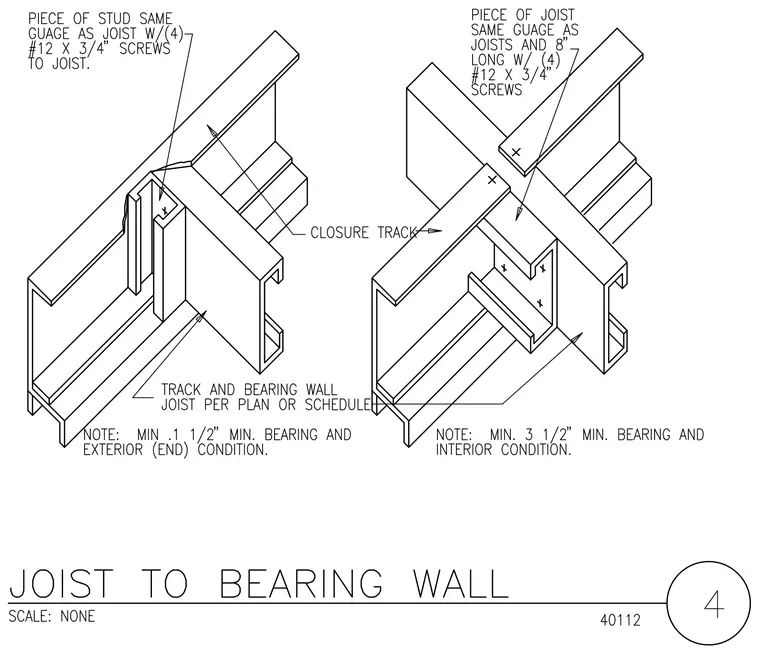

Cold-formed steel joist framing into a bearing wall features a track and bearing wall joist sized per plan or schedule. The exterior end condition requires a minimum one and one-half inch minimum bearing and includes a piece of stud of the same gauge as the joist fastened with four number twelve by three-quarter inch screws to the joist, along with a closure track. The interior condition requires a minimum three and one-half inch minimum bearing and includes a piece of joist of the same gauge as the joist, eight inches long, fastened with four number twelve by three-quarter inch screws, along with a closure track.
