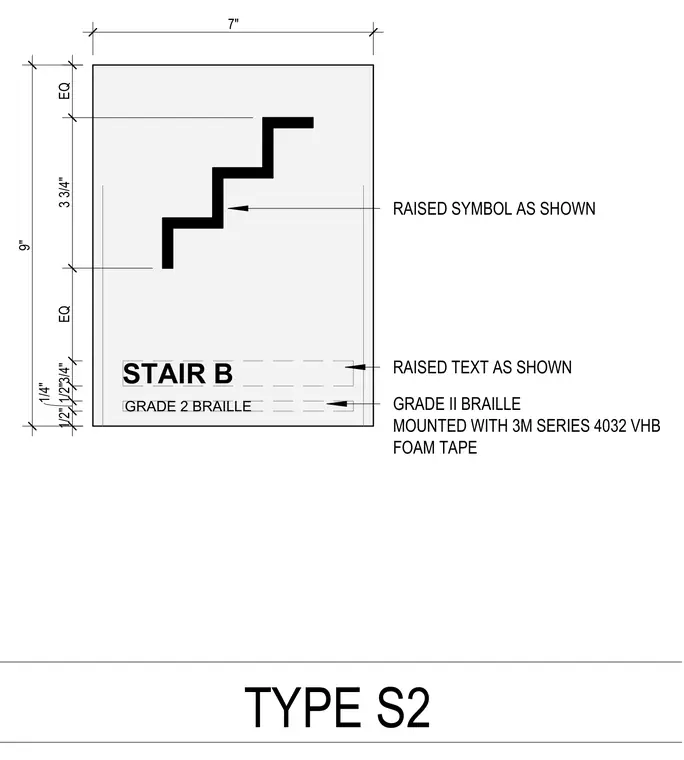

This tactile sign measures 7 inches wide by 9 inches high and features a raised stair symbol, raised text reading STAIR B, and Grade II braille. The sign is mounted using 3M series 4032 VHB foam tape. Dimensions establish the positioning and equal spacing of the raised elements across the face of the sign panel.
GRADE 2 BRAILLE EQ 3 3/4" EQ 3/4" 1/2" 1/4" 1/2" TYPE S2 7" GRADE II BRAILLE MOUNTED WITH 3M SERIES 4032 VHB FOAM TAPE RAISED SYMBOL AS SHOWN RAISED TEXT AS SHOWN STAIR B 9"
