This built-in tiered seating assembly is constructed on a structural base of two-by-four nominal fire-treated wood framing spaced at sixteen inches on center typically. The horizontal and vertical surfaces are finished with three-quarter-inch cabinet-grade multi-ply Baltic birch plywood featuring exposed multi-ply edges finished with one clear coat. Selected vertical faces feature metal plate steel finished with two coats of clear lacquer over three-quarter-inch plywood and scribed to the wall. The lower tier incorporates an eighteen-inch hold supporting a two-inch high-density foam upholstered cushion attached via velcro, detailed with a fabric bench seat cushion allowance. The upper tier accommodates a custom artificial moss manufactured plant planter sized per plan.

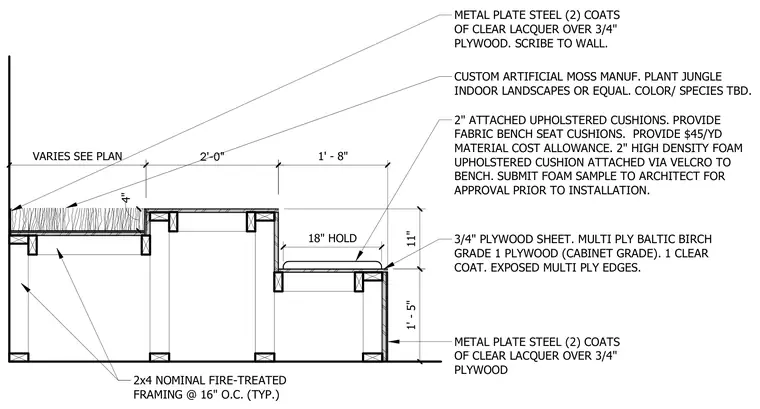

METAL PLATE STEEL (2) COATS OF CLEAR LACQUER OVER 3/4" PLYWOOD 3/4" PLYWOOD SHEET. MULTI PLY BALTIC BIRCH GRADE 1 PLYWOOD (CABINET GRADE). 1 CLEAR COAT. EXPOSED MULTI PLY EDGES. METAL PLATE STEEL (2) COATS OF CLEAR LACQUER OVER 3/4" PLYWOOD. SCRIBE TO WALL. 2x4 NOMINAL FIRE-TREATED FRAMING @ 16" O.C. (TYP.) 1' - 5" 11" 2" ATTACHED UPHOLSTERED CUSHIONS. PROVIDE FABRIC BENCH SEAT CUSHIONS. PROVIDE $45/YD MATERIAL COST ALLOWANCE. 2" HIGH DENSITY FOAM UPHOLSTERED CUSHION ATTACHED VIA VELCRO TO BENCH. SUBMIT FOAM SAMPLE TO ARCHITECT FOR APPROVAL PRIOR TO INSTALLATION. 18" HOLD 2'-0" 4" VARIES SEE PLAN CUSTOM ARTIFICIAL MOSS MANUF. PLANT JUNGLE INDOOR LANDSCAPES OR EQUAL. COLOR/ SPECIES TBD. 1' - 8"
